Never Say Good Enough

VORIS TOOL - Anyone who uses Adel clamps knows how difficult they can be to install. There's never been a 'Right Tool' for the job - until now. Our patented tool securely holds clamp ears and hardware in position to quickly handle the most difficult stacked-clamp installations in tight spaces.

Our durable tools make installing Adel clamps in tight spaces fast and simple, and eliminate the frustration of fumbling with screwdrivers, locking pliers, and safety wire. The Adel Clamp Installation Tool significantly reduces labor, eliminates the risk of FOD from safety wire, and removes the incentive to use improper hardware by quickly securing the clamps and nut in position to easily install the correct hardware.

Simply Better

Our tool dramatically speeds clamp installation and eliminates the risk of clamps springing loose and slinging hardware into the bowels of the aircraft in three simple steps.

(A ratcheting screwdriver with ¼” drive socket is ideal for turning the drive screw and then removing the alignment pin)

ONE

Insert alignment pin through clamp screw holes. Thread 3/8” or ¼” flange 10-32 nut onto alignment pin.

TWO

Pinch clamp ears together and place upper jaw around alignment pin, capture nut in bottom jaw hex. Turn drive screw to firmly tighten jaws on clamp ears.

THREE

Remove alignment pin. Install 10-32 screw and remove installation tool.

The Adel Clamp Installation Tool (Video)

Click To Play

Quality Made In The USA

Get The Job Done Right

Remove Pain & Frustration

Significantly reduce labor hours, especially when installing multiple clamps or working in tight spaces

Install Adel clamps using the only tool that can hold clamps and hardware in position

Prioritize Safety & Maintenance

Remove the temptation to use incorrect hardware or oversize clamps

Eliminate the risk of FOD from using safety wire

Eliminate Tool Limitations

Stop praying that the pliers don’t slip off before the nut grabs a couple of threads

Confidently install clamps in locations where others resort to zip ties with our Made in USA tools

Order

Order Now And Save

Adel Clamp Installation Tool starting at $185

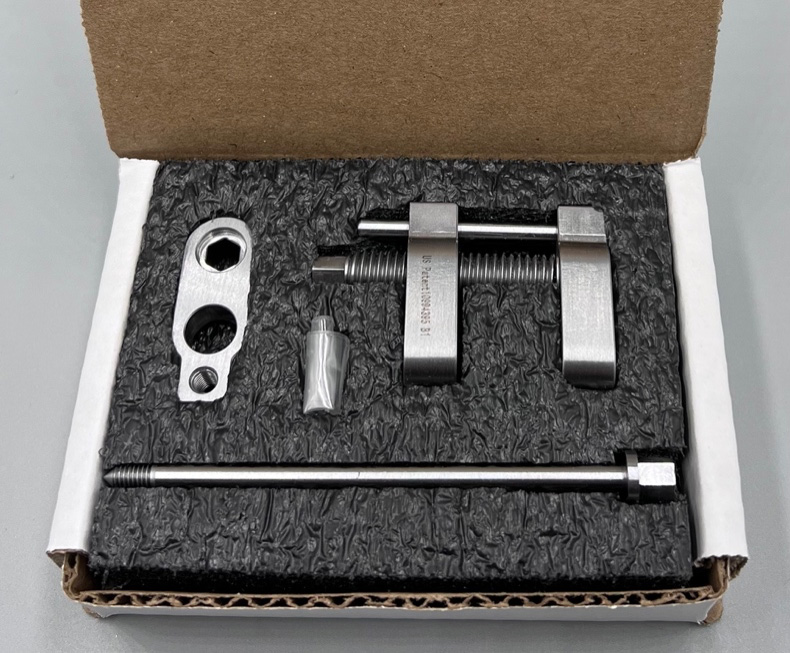

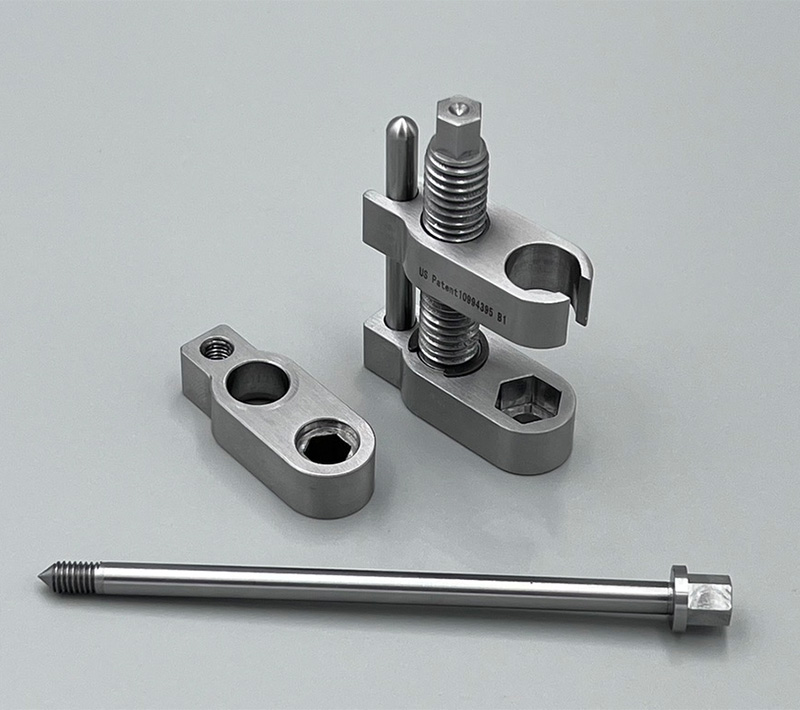

Adel Clamp Installation Tool Includes:

• 3/8" nut and 1/4" flange nut lower jaws 
• 2.25" drive screw 
• Guide pin 
• Alignment Pin 
• Extra e-clips

NOTE: We can make jaws and tooling for other hardware at additional cost - just let us know what your requirements are in the comments section below.

Buy your Adel Clamp(s) Installation Tool at the secure payment button below. If you have any questions let us know in the form below and we'll take care of you.

Thank you - Voris Tool
——

QUANTITY
1 Tool $185.00 USD
2 Tools $370.00 USD
3 Tools $555.00 USD
4 Tools $740.00 USD
5 Tools $900.00 USD
10 Tools $1,800.00 USD
20 Tools $3,600.00 USD
